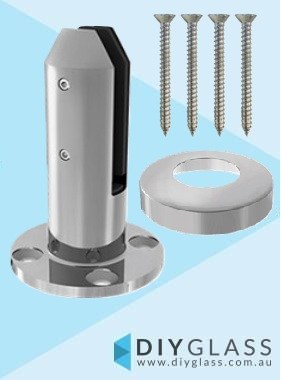

Satin Stainless Round Base Plated Spigot With Cover and Fixing Screws for Glass Balustrade or Pool Fence

Use on glass balustrading or pool fencing.

• Satin Stainless Finish
• Easy Top Mount Base Plate Installation
• Friction Fit Glass (no holes in glass required)
• Suits 12mm thick glass
• 2205 Grade Stainless Steel
• 50mm Front profile
• 4 x 11mm Counter Sunk Holes for timber screw or Countersunk bolt installation
• Suitable for Glass Balustrade or Pool Fence Applications
• Load test certificates available if required.

Includes 18mm High Cover and Timber Fixing Screws

Click Here to view our Base Plate Spigot Installation Guide

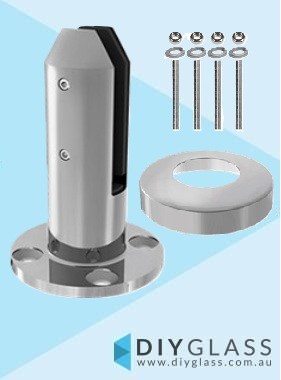

Satin Stainless Round Base Plated Spigot With Cover and Fixing Rods for Glass Balustrade or Pool Fence

Use on glass balustrading or pool fencing.

• Satin Stainless Finish
• Easy Top Mount Base Plate Installation
• Friction Fit Glass (no holes in glass required)
• Suits 12mm thick glass
• 2205 Grade Stainless Steel
• 50mm Front profile
• 4 x 11mm Counter Sunk Holes for timber screw or Countersunk bolt installation
• Suitable for Glass Balustrade or Pool Fence Applications
• Load test certificates available if required.

Includes 18mm High Cover and 4 x Fixing Rods, Nuts and Washers for Concrete Installation

Click Here to view our Base Plate Spigot Installation Guide

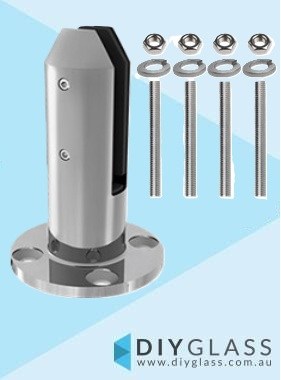

Satin Stainless Round Base Plated Spigot With Fixing Rods for Glass Balustrade or Pool Fence

Use on glass balustrading or pool fencing.

• Satin Stainless Finish
• Easy Top Mount Base Plate Installation
• Friction Fit Glass (no holes in glass required)
• Suits 12mm thick glass
• 2205 Grade Stainless Steel
• 50mm Front profile
• 4 x 11mm Counter Sunk Holes for timber screw or Countersunk bolt installation
• Suitable for Glass Balustrade or Pool Fence Applications
• Load test certificates available if required.

Includes 4 x Fixing Rods, Nuts and Washers for Concrete Installation

Click Here to view our Base Plate Spigot Installation Guide

Cover for Round Spigots

Neatly fits over core hole or base plate spigot to hide fixing.

M10 x 120mm Stainless Threaded Rod, Nuts and Washers x 4 pack

• 4 x M10x120mm Stainless Steel Threaded Rods
• 4 x M10 Nuts
• 4 x M10 Washers
• Ideal for use with Square and Round Base Plate Spigots into Masonry or Steel
• 1 pack required per spigot

Extender for Core Hole Spigots

• Use with Square and Round Core Hole Spigots
• Extends spigot by up to 200mm
• Made from 304 grade Stainless Steel

End Cap for 35x35mm Aluminium Glass Top Rail

• 35mm W x35mm H x 4mm T
• Flat End Cap with Tab that presses into the cavity of the rail
• Includes one pointed grub screw in the tab to help secure the cap onto the rail

Available in:

• Satin Anodised
• Matt Black
• Matt White
• Mill finish - Suitable for Powder coating to any colour of your choice.

Note: 2 End Caps are supplied with each length of rail. Only order these if you need extras

Black End Cap for 35x35mm Aluminium Glass Top Rail

• Matt Black
• 35mm W x35mm H x 4mm T
• Flat End Cap with Tab that presses into the cavity of the rail
• Includes one pointed grub screw in the tab to help secure the cap onto the rail

Note: 2 End Caps are supplied with each length of rail. Only order these if you need extras

Mill Finish End Cap for 35x35mm Aluminium Glass Top Rail

• 35mm W x35mm H x 4mm T
• Mill finish - Suitable for Powder coating to any colour of your choice.
• Flat End Cap with Tab that presses into the cavity of the rail
• Includes one pointed grub screw in the tab to help secure the cap onto the rail

Note: 2 End Caps are supplied with each length of rail. Only order these if you need extras

Matt White End Cap for 35x35mm Aluminium Glass Top Rail

• Matt White
• 35mm W x35mm H x 4mm T
• Flat End Cap with Tab that presses into the cavity of the rail
• Includes one pointed grub screw in the tab to help secure the cap onto the rail

Note: 2 End Caps are supplied with each length of rail. Only order these if you need extras

Satin Anodised End Cap for 35x35mm Aluminium Glass Top Rail

• Satin Anodised
• 35mm W x35mm H x 4mm T
• Flat End Cap with Tab that presses into the cavity of the rail
• Includes one pointed grub screw in the tab to help secure the cap onto the rail

Note: 2 End Caps are supplied with each length of rail. Only order these if you need extras

Adjustable Horizontal Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm Horizontal Adjustable Joiner
• Use when 2 lengths of rail join on a horizontal plane at any angle other then 90 degrees
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: Rail must be neatly cut on the correct angles. A aluminium cutting blade on a drop saw will give best results

Inline Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm Inline Joiner
• Use when 2 lengths of rail join in a straight line
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: For maximum strength the joiner must be installed over the centre of a glass panel.

90 Degree Joiner for 35x35mm Aluminium Glass Top Rail

• 35x35mm 90 Degree Joiner
• Use when 2 lengths of rail join at a 90 degree corner
• Made from structural alloy 6061-T6
• Fits into Internal Cavity of Rail
• 4 x Pointed Grub Screws pre-installed to aid in securing join of rails
• Fitting is not visible once installed so does not need to colour match to the rail

Note: Rail must be neatly cut on a 45 degree mitre. A aluminium cutting blade on a drop saw will give best results

35x35mm 5800mm length Aluminium Glass Top Rail

• 35x35mm External Profile
• 5800mm long aluminium handrail
• Made from structural alloy 6061-T6
• Each length is supplied as a kit which INCLUDES 2 x end caps & 5800mm long glazing rubber to suit 15mm glass
• Railing suits 12, 15, 17.52 and 21.52mm thick glass – simply use correct glazing rubber
• Joiners fit into internal cavity at top of rail
• Rail can be easily cut to required length or angle with a Aluminium cutting blade on a drop saw.

Available in:

• Satin Anodised
• Matt Black
• Matt White
• Mill finish - Suitable for Powder coating to any colour of your choice.

Note: If using glass that is not 15mm you will need to order the glazing rubber separately.

Black 35x35mm Aluminium Glass Top Rail

• Matt Black
• 35x35mm External Profile
• 5800mm long aluminium handrail
• Made from structural alloy 6061-T6
• Each length is supplied as a kit which INCLUDES 2 x end caps & 5800mm long glazing rubber to suit 15mm glass
• Railing suits 12, 15, 17.52 and 21.52mm thick glass – simply use correct glazing rubber
• Joiners fit into internal cavity at top of rail
• Rail can be easily cut to required length or angle with a Aluminium cutting blade on a drop saw.

Note: If using glass that is not 15mm you will need to order the glazing rubber separately.

Mill Finish 35x35mm Aluminium Glass Top Rail

• Mill finish - Suitable for Powder coating to any colour of your choice.
• 35x35mm External Profile
• 5800mm long aluminium handrail
• Made from structural alloy 6061-T6
• Each length is supplied as a kit which INCLUDES 2 x end caps & 5800mm long glazing rubber to suit 15mm glass
• Railing suits 12, 15, 17.52 and 21.52mm thick glass – simply use correct glazing rubber
• Joiners fit into internal cavity at top of rail
• Rail can be easily cut to required length or angle with a Aluminium cutting blade on a drop saw.

Note: If using glass that is not 15mm you will need to order the glazing rubber separately.

White 35x35mm Aluminium Glass Top Rail

• Matt White
• 35x35mm External Profile
• 5800mm long aluminium handrail
• Made from structural alloy 6061-T6
• Each length is supplied as a kit which INCLUDES 2 x end caps & 5800mm long glazing rubber to suit 15mm glass
• Railing suits 12, 15, 17.52 and 21.52mm thick glass – simply use correct glazing rubber
• Joiners fit into internal cavity at top of rail
• Rail can be easily cut to required length or angle with a Aluminium cutting blade on a drop saw.

Note: If using glass that is not 15mm you will need to order the glazing rubber separately.

Satin Anodised 35x35mm Aluminium Glass Top Rail

• Satin Anodised
• 35x35mm External Profile
• 5800mm long aluminium handrail
• Made from structural alloy 6061-T6
• Each length is supplied as a kit which INCLUDES 2 x end caps & 5800mm long glazing rubber to suit 15mm glass
• Railing suits 12, 15, 17.52 and 21.52mm thick glass – simply use correct glazing rubber
• Joiners fit into internal cavity at top of rail
• Rail can be easily cut to required length or angle with a Aluminium cutting blade on a drop saw.

Note: If using glass that is not 15mm you will need to order the glazing rubber separately.

Glazing Rubber for 35x35mm Aluminium Glass Top Rail

• 35x35mm Glazing Rubber
• 6000mm length
• Fits between the glass and the rail

Available for:

• 12mm Glass
• 15mm Glass
• 17.52mm Glass
• 21.52mm Glass

Note: 15mm Glazing Rubber comes with the rail so you only need to order rubber if you are using glass that is not 15mm thick or you need spare rubber
